    4.8*1.7mm Dell Laptop AC Adapter 19V 1.58A 30W Short Circuit Protection

    Ask Lasest Price
    Brand Name : Dell
    Model Number : PA-30W
    Certification : ce fcc rohs
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000pcs per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    4.8*1.7mm Dell Laptop AC Adapter 19V 1.58A 30W Short Circuit Protection

    Dell Factory 30W 19V 1.58A 4.8*1.7mm Laptop AC Adapter


    Product Description for this DELL 30W Laptop AC Adapter


    1. Smart device surge protection for over voltage, short circuit protection.
    2. Strong built for heavy duty and long usage performance.
    3. CE,RoHS,FCC certified.

    BrandDELLTips4.8*1.7mm
    Usagefor dellColorBlack
    size85*35*27mmweight135g
    Output19V 1.58ATypeDesktop
    Input Voltage

    100-240V ac

    Universal Input

    Power30W
    CertificationsCE FCC ROHS
    DC Connector

    4.8*1.7mm


    Instructions

    If you don't know whether this machine can use this adapter, you can view your

    original adapter's output parameters ( Output voltage, current ) whether

    suitable, if the original adapter lost, or you can look at the electronic equipment

    at the bottom of the parameters of the machine specifications

    Protection

    Over Loading Protection; Over Voltage Protection;

    Temperature Protection; Short Circuit Protection.

    Technical Specification:

    Condition: 100% Brand New
    Input: 100 to 240V AC,1.0-0.6A, 50 to 60Hz
    Protection: Over-current, voltage and auto recovery
    Output Protection: Over-load and short-circuit protection
    AC Inlet: Plug-in type
    Input Inrush Current (cold): 30A / 230V AC
    Input Leakage Current: <0.5ma / 230V AC
    Power Adjustment Rate (full load): ≤ 0.5%
    Load Regulation: ≥ 1%
    Output Stability: 0.5% typ.
    Output Voltage Micro-Adjustment Range: ± 10%
    Output Ripple (resistive load): 100mVp typ
    Output Overload: 115% ~ 150%
    Insulation Strength: Class A

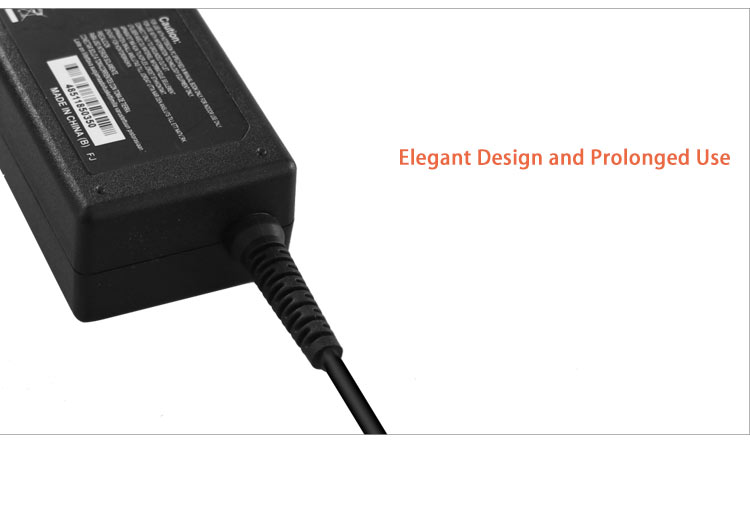

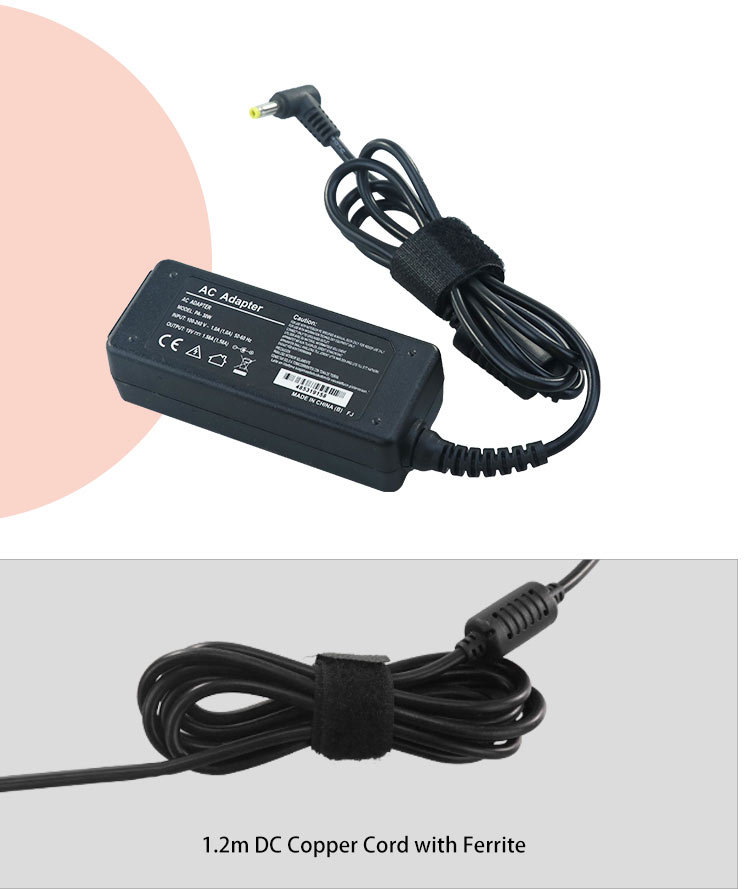

    Pictures for this DELL 30W Laptop AC Adapter



    FAQ

    1, What kind of company we are?

    We are professional power supply manufacturer with high reputation in this field.


    2, How we control the quality?

    Aging test for 8 hours, after then we put them into the market.


    3, Can we accept samples customized?

    No problem for samples order, and welcome your testing before your big order.


    4, OEM and ODM are available?

    Yes, we accept customized products.


    5, Will the delivery time be long for a big order?

    No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.


    6. What is our warranty service?

    For all products we sell have 13 months warranty.
